60-Foot Yacht Dimensions: Layout, Beam and Draft
Compare real 60-foot yacht dimensions, understand beam, draft and air draft, and use a practical checklist for layout, marina fit and haul-out planning.
A “60-foot yacht” is a useful shopping category, not a precise set of dimensions. A yacht advertised at 60 feet may measure just under or just over 60 feet overall, and two boats in the same class can differ by more than a foot in beam and draft. That difference affects berth fit, access to shallow anchorages, interior volume and the equipment needed for haul-out.
This guide explains what to measure, how a 60-foot motor yacht is commonly arranged, and which numbers to confirm before you buy or book a berth. The examples below use published specifications from two real manufacturers; they are examples, not class-wide averages.
Quick answer: how big is a 60-foot yacht?

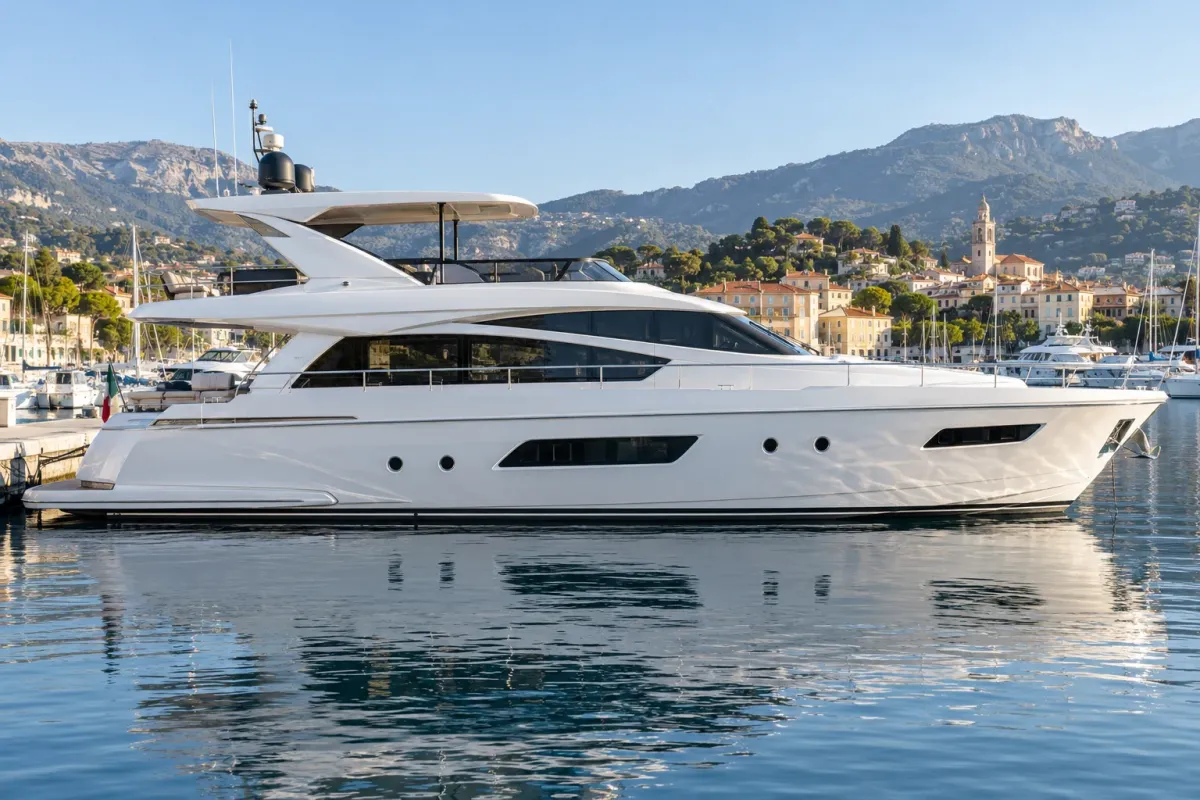

Sixty feet equals 18.288 metres. In practice, published overall lengths around this class can fall on either side of that figure. Azimut lists the Fly 60 at 18.25 metres (59 feet 10 inches) overall including the pulpit, with a maximum beam of 5.05 metres (16 feet 7 inches) and a full-load draft of 1.46 metres (4 feet 9 inches), including propellers. Sunseeker’s previous Manhattan 53 model—marketed by its builder at 60 feet 2 inches—lists an 18.35-metre length, a 4.70-metre beam and a 1.26-metre draft. The builders also report different displacement conditions, so those figures should not be compared as if measured identically. See the Azimut Fly 60 specifications and Sunseeker Manhattan 53 specifications.
The useful takeaway is that a small difference in the model name does not predict the boat’s width, underwater clearance or usable interior. Check the exact model year and equipment specification.
Read the four dimensions that affect fit
- Length overall (LOA): the vessel’s total length as defined by its specification. The listing may include a pulpit, swim platform or other fittings; confirm what the quoted number includes and what the marina measures.
- Beam: the widest point of the yacht. This is central to slip width, side clearance, travel-lift capacity and sometimes transport planning. A 5.05-metre beam is about 35 centimetres wider than a 4.70-metre beam.
- Draft: the vertical distance from the waterline to the lowest underwater point. Props, stabilizers, loading and the manufacturer’s measurement condition matter. Azimut explicitly identifies its Fly 60 draft as full-load and including propellers.
- Air draft: the height above the waterline to the highest fixed point. Antennas, radar arches, hardtops and mast equipment can change the practical number. Ask the builder or measure the configured boat before planning a bridge passage.
Draft is not the same as the depth you should feel comfortable navigating in. Add a prudent under-keel clearance for the boat, local tide, waves, bottom type and the accuracy of charted depths. A marina or cruising guide can advise on local conditions, but the skipper remains responsible for passage planning.
What layout can you expect?
There is no universal 60-foot floor plan. Azimut describes the Fly 60 with three guest cabins and one crew cabin, with berths and heads also specified separately. That is a useful example of how a builder can use the same broad length class for a family-oriented layout with dedicated crew space. Other models may prioritize a larger owner’s cabin, additional guest berths, a day head, a tender garage or more open social areas.
Compare the general arrangement (GA) drawing rather than relying on cabin count alone. Look for:
- the size and privacy of the owner and guest cabins;
- whether crew accommodation has a separate entrance and head;
- the number and location of bathrooms, including whether a day head is accessible from the main deck;

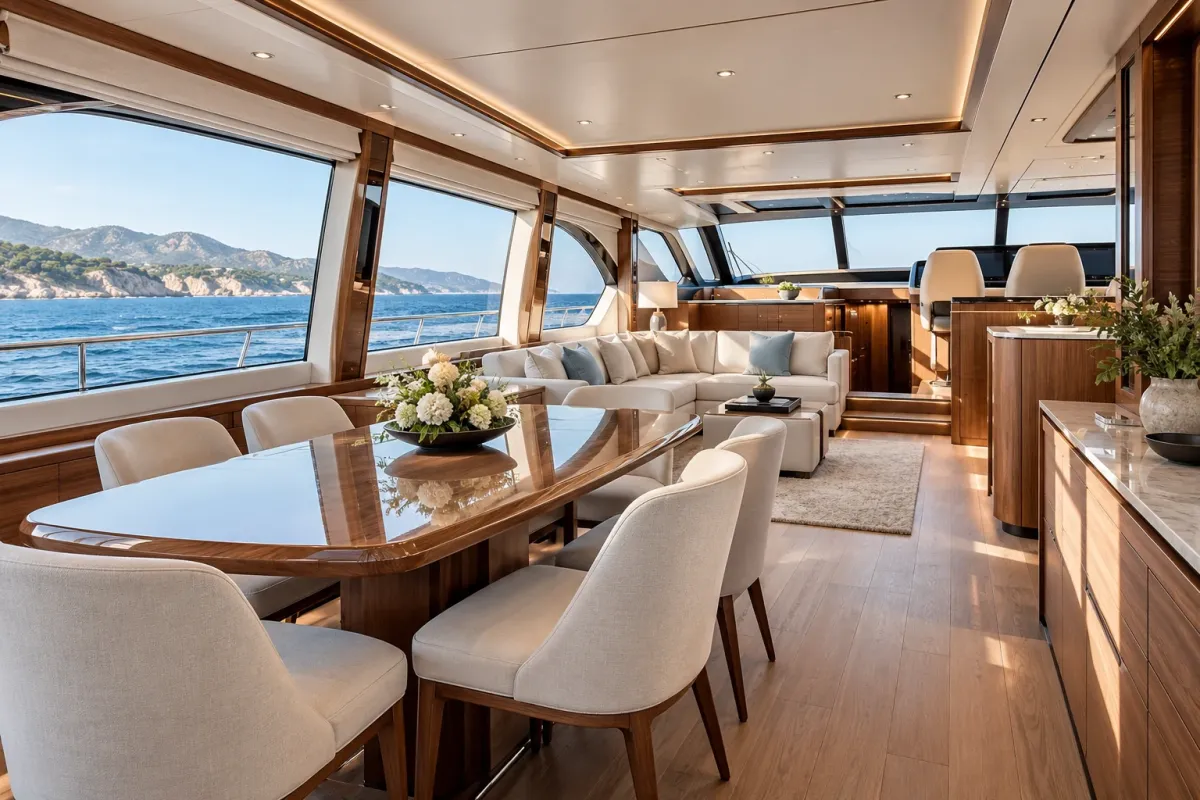

- salon seating, dining capacity and the route between galley and cockpit;
- headroom, storage, natural light and access to the engine room;
- the location and dimensions of tender storage, cranes and water toys.
Ask to see the exact GA for the hull and interior configuration being offered. Options can change usable storage, equipment locations and sometimes the stated weight.

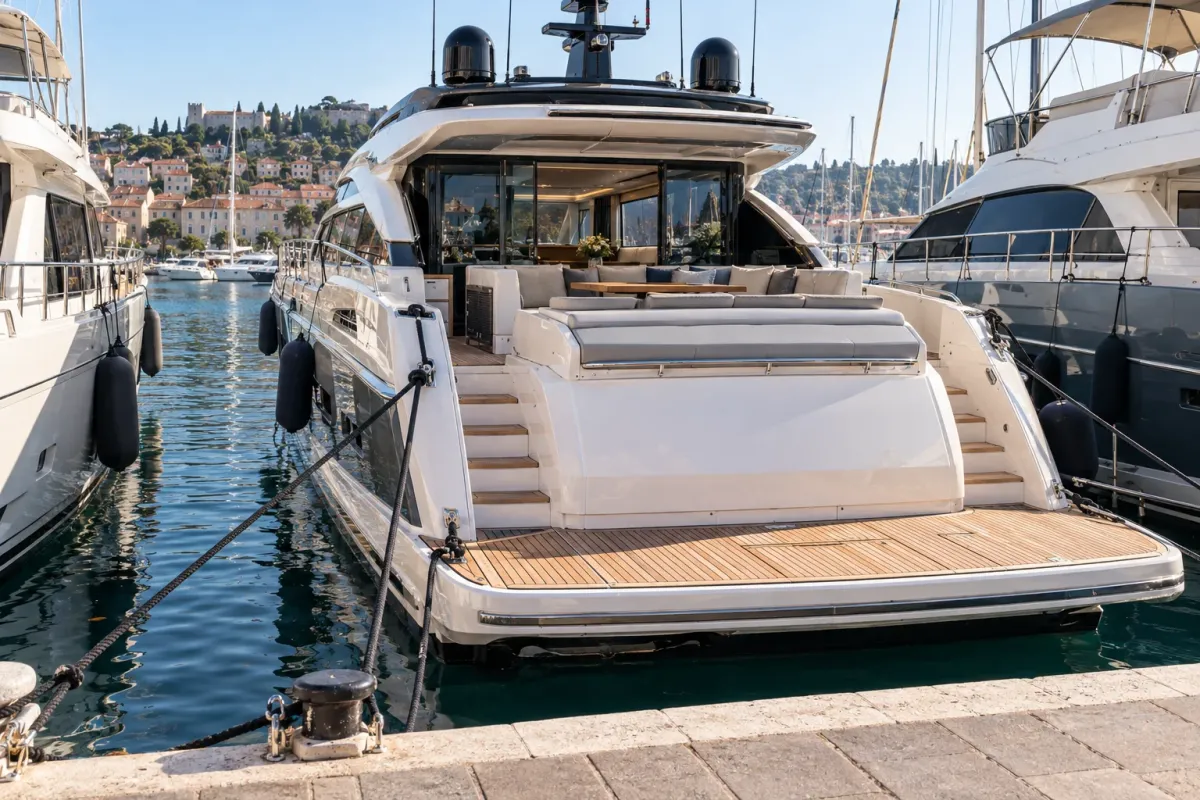

Beam, berth width and marina access
Beam determines the maximum width of the hull, but it does not tell you how wide a marina slip must be. Fenders, finger piers, neighboring vessels, wind exposure and the marina’s own spacing rules all affect fit. Before committing, give the marina the yacht’s exact LOA and beam, and ask whether those numbers include the platform, pulpit and permanently fitted equipment.
Also confirm the route into the berth: entrance width, turning room, controlling depth, exposure to crosswinds, and any bridge or overhead restrictions. A boat that fits between the pontoons can still be difficult to maneuver into a tight basin.
Draft, air clearance and real cruising limits
For a cruising plan, compare the yacht’s stated draft with the shallowest waters, marina entrances and anchorages you expect to use. Check whether a specification is measured at lightship, half load or full load. Fuel, water, tender, stores and optional equipment can change the boat’s operating condition. If a route includes bridges, tunnels or power lines, establish the fully equipped air draft and verify vertical clearance information for the relevant water level.
Published figures are a starting point. A surveyor or builder can help verify a specific vessel’s condition and configuration, while local charts and notices should guide navigation. Never use a marketing dimension as a substitute for current passage information.
Displacement and haul-out planning
Displacement is the yacht’s weight under a stated condition, not a measure of interior size. It matters for lifting, transport, trailer or cradle planning, and can help explain why two yachts with similar LOA behave differently. One builder may quote lightship displacement and another full-load displacement; loaded condition must be stated before comparing values.
Before booking a haul-out, provide the yard with the exact model, estimated loaded weight, beam, draft, keel or propeller clearance, and lifting points if known. Confirm travel-lift safe working load and opening width, sling positions, block requirements and whether the yacht’s stabilizers or appendages affect support. The yard should approve the arrangement for the individual vessel.
A practical pre-purchase measurement checklist
- Get the builder’s specification sheet and GA drawing for the exact model year and options.
- Confirm LOA, beam, draft and air draft, including how and where each measurement is defined.
- Ask whether displacement is lightship, half load or full load, and what equipment and fluids are included.
- Check the intended home berth, access channel, bridge clearances and local depth limits with the relevant marina or authority.
- Ask the haul-out yard to confirm lift capacity, sling arrangement, cradle dimensions and hardstand space.
- During a survey, verify that the delivered yacht matches its specification and disclose any planned equipment additions.
How dimensions connect to annual ownership costs
Length and beam influence where a yacht can berth and how it can be handled ashore. Weight, engines, equipment and cruising hours influence other costs. A 60-foot label alone cannot produce a reliable annual budget; model, location and use matter. For budgeting, see our 60-Foot Yacht Annual Cost Guide and build a separate estimate from current marina, insurance, maintenance and fuel quotes.
Frequently asked questions
Is every 60-foot yacht exactly 60 feet long?
No. Advertised class names are rounded and can differ from published LOA. For example, the cited Azimut specification is 59 feet 10 inches overall including the pulpit, while the cited Sunseeker model is 60 feet 2 inches.
How wide is a 60-foot yacht?
There is no single class-wide beam. The two cited examples list 4.70 metres and 5.05 metres. Check the exact model and include marina fender and clearance requirements when planning a berth.
How many cabins does a 60-foot yacht have?
It depends on the model and layout. The Azimut Fly 60 is listed with three guest cabins plus one crew cabin; other boats may configure space differently. Review the general arrangement drawing for the actual vessel.
Can a 60-foot yacht enter shallow water?
That depends on its loaded draft, underwater equipment, local depth and conditions. Compare the exact vessel’s draft with current local navigation information and allow appropriate under-keel clearance.
